Soil Testing Instruments



All instruments offered here can be ordered and price will include Air Freight

Charges and door to door charges (if required by the Client). All Invoices issued

Will have a payment links to pay using Visa or MasterCard Credit / Debit Cards.

Delivery after Payment received usually not longer than 30 days.

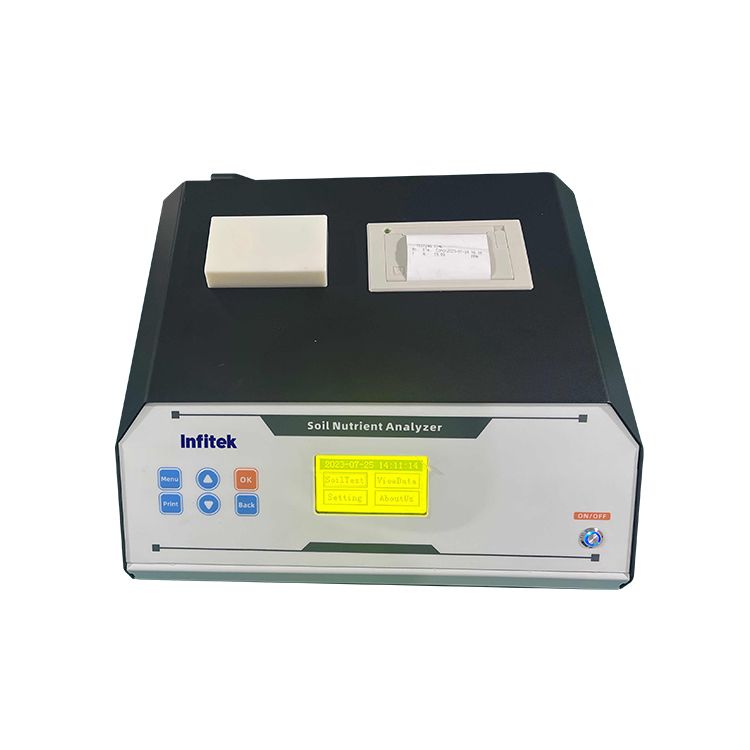

Soil Nutrient Speed Tester; BSN Series

1.    Soil Nutrient Stability: Absorbency of light drift＜0.003

2.    Soil Nutrient Repeatability: Absorbency of light＜0.005

3.    pH Testing range: 1-14

4.    pH Error: ±0.1

5.    Soil moisture Accuracy: ±2%

6.    Soil moisture Moisture content rate testing range: 0-100%

PRICE : Call



SDG200 Non-Nuclear Soil Density Gauge with GPS

SDG200 Non-Nuclear Soil Density Gauge with GPS

measures Dry Density, % Compaction, % Moisture

CodeBM905

Approx. Weight (kg)19.3

PRICE : Call

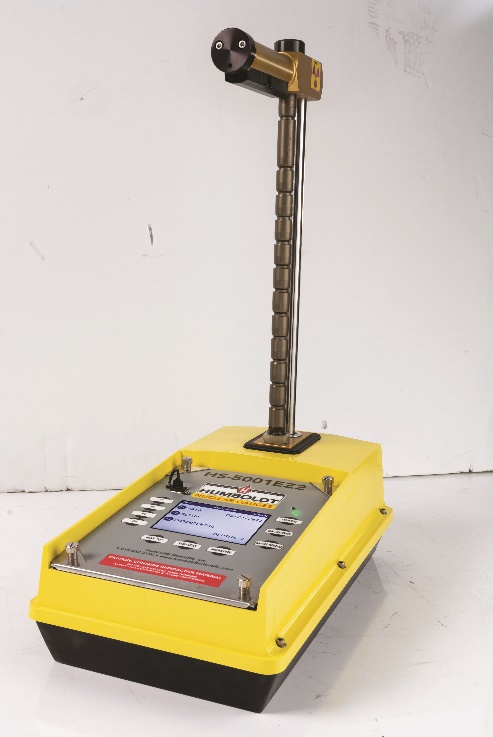

Moisture/Density Gauge EZ Series

Moisture/Density Gauge EZ Series



The New EZ-2’s versatility allows it to measure density through

direct transmission, backscatter, thin lift and trench modes, as

well as providing moisture determinations.



CodeMH320

Other Standards ASTM D6938, ASTM D2950, ASTM C1040, AASHTO T310, BS 1377-9: Clause 2.5



Easy to operate, easy to power and easy to service. The EZ gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation. It also features our innovative trigger release handle that eliminates pinched fingers while providing smooth operation.
The EZ gauge provides a single gauge solution to density and moisture measurements.
The EZ’s versatility allows it to measure density through direct transmission and backscatter modes, as well as including thin lift and trench modes, as well as moisture determinations. The gauge uses an advanced micro-processor-based technology to provide highly-accurate measurements of density and moisture that are automatically computed for direct readouts of wet density, dry density, moisture content, percent of moisture, percent of compaction (Proctor or Marshall), void ratio and air voids.


Standards

ASTM D6938 D2950, C1040
AASHTO T310.

The gauge is calibrated by the Five-block calibration method.

• Menu-driven operation—direct readings in engineering units
• AA batteries eliminate charging—6-12 month battery life
• Easy operation handle with positive latch
• Modular design, simplifies repairs
• Automatic depth sensor


Easy to Operate

The EZ gauge features a menu-driven control panel with easy-to-use, built-in test routines and auto features, making testing a quick and accurate operation.

Easy to Power

The EZ is powered by six standard AA alkaline batteries, which provide up to 2000 hrs of service. No chargers are needed and you can buy batteries almost anywhere.

Easy to Service

The EZ gauge also uses a modular design, which allows it to be serviced in the field, if ever necessary. With this gauge, you don’t have to send it back to the factory for repairs, we’ll send you the necessary components and walk you through any repair procedure.

Supplied complete with

Gauge, Reference Standard, Source and Case Certification, Wipe Test Kit, Rod Guide/Scraper Plate, Drill Pin, Four Pound Hammer, Pin Extraction Tool, Zippered Accessory Case, Transit Case, Radiation Safety Manual and Operator’s Manual.


Measurement:    Density at 125 pcf (2000 kg/m3)

PRICE : Call

Thermocouple Wire, Fibreglass 100 metres

with K connector



PRICE : CALL



8 Channel Data Logger

8 Channel Data Logger

with RS232 communications and USB port BS1377-7, BS1377-8



PRICE : CALL

Electrical Moisture / Density Gauge

Nuclear-free gauge to ASTM D7698



The Electrical Moisture/Density Gauge is a nuclear-free alternative for determining the moisture and density of compacted soils used in road beds and foundations. It is a portable, battery-powered instrument capable of being used anywhere without the concerns and regulations associated with nuclear safety.

Its user-friendly, step-by-step menu guides the user through each step of the testing procedure and cautions the user when values do not correspond to established curves for the material being tested.

Easy-to-use, it can be used as a construction aid to monitor day-to-day compaction operations by providing performance and measurement results highly comparable to those achieved with traditional methods, including the nuclear gauge and/or a sand-cone and oven moisture test combination.

When conducting a test, the Electrical Moisture/Density Gauge measures and displays the results for wet and dry density, gravimetric moisture content and percent compaction.



For contractors the advantages are:

The Electrical Moisture/Density Gauge measures the electrical dielectric properties and moisture levels of compacted soil using high, radio frequency traveling between darts driven into the soil being tested. The dart's depth of penetration positively determines the depth of measurement.

Darts are available in 4", 6", 8", 10" and 12" lengths. In addition, the darts have been designed with a taper, which ensures a continual positive contact with the soil for accurate measurements.



PRICE : CALL





4 Channel Digital Display

4 Channel Digital Display

displays 4 channels at once
BS1377-7, BS1377-8

Supplied as standard with 4 input channels using industry standard 5pin lockable

DIN connectors.

Key Features



CodeSL701

British StandardBS1377

Approx. Weight (kg)1.25

PRICE : CALL

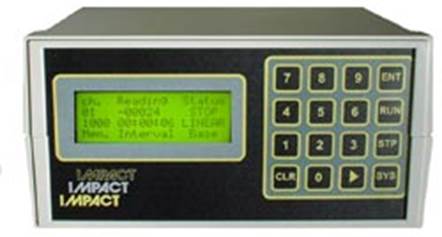

4 Channel Data Logger

with RS232 communications
BS1377-7, BS1377-8

CodeSL702

British StandardBS1377

Approx. Weight (kg)1.25



Impact's SL702 data logger is designed to deliver outstanding performance to meet the most demanding measurement applications.
Each data logging system is delivered complete with a powerful and comprehensive data acquisition software package. Drive multiple SL702 data loggers from you desk with the RS485 communications option.
Supplied as standard with 4 input channels using industry standard 5pin lockable DIN connectors. Just configure the sensor inputs using our standard setup and calibration routines.

Key Features

PRICE : CALL



16 Channel Data Logger

16 Channel Data Logger

with RS232 communications and USB port BS1377-7, BS1377-8

CodeSL703

British StandardBS1377

Approx. Weight (kg) 3

Impact Data Loggers 8, 16, 24 and 32 channels available

Impact Data Loggers are designed to deliver outstanding performance to meet the most demanding measurement applications. Each data logger is delivered complete with a powerful and comprehensive data acquisition software package.

Data loggers are supplied as standard with analogue sensor input connectors. Sensor inputs are easily configured

 using our standard setup and calibration routines.

Standard Hardware Features

Optional Hardware Features

Software Features

Comprehensive data acquisition software is supplied with Impact 8, 16, 24 and 32 channel data loggers. The user friendly windows based software handles all control, download and review, archiving and exporting functions.

The graphical user interface gives a complete live data display of all channels with a control interface directly from your computer. Computer high and low alarms are available with annunciate function.

The user can set up any combination of channels in test sets.
Recorded data can be exported directly into your Excel spreadsheets and templates or as a Comma Separated Variable

(CSV) file.

Data can be both reviewed and printed in graphical formats.

Complete data test sets can be printed with ease.



PRICE : CALL



1kN Submersible Load Cell

1kN Submersible Load Cell

1kN Capacity
BS1377-8

CodeSL740

Approx. Weight (kg)1

Strain Gauge Based Submersible Triaxial Load Cell

This series of submersible triaxial load cells has been designed for measuring compressive loads from 1kN to 50kN. The products can be fitted into new or existing triaxial cells with a diameter up to100mm.
The design features an internal pressure compensation system that eliminates zero offset changes when the load cell is subjected to external pressure changes. Being insensitive to cell confining pressure, the load cell can be used inside the triaxial cell.

As the load is measured within the cell it eliminates the effects of piston friction.

The use of specially selected heat treated stainless steel and precision strain gauges ensure optimum performance and

excellent long term stability.

PRICE : CALL





3kN Submersible Load Cell

3kN Submersible Load Cell

3kN Capacity
BS1377-8

CodeSL741

Approx. Weight (kg)1

Strain Gauge Based Submersible Triaxial Load Cell

  • Fully submersible to an external pressure of up to 70bar
  • Pressure Compensated Design
  • Robust Construction
  • Simple Installation
  • High Performance
  • High Side load Tolerance

This series of submersible triaxial load cells has been designed for measuring compressive loads from 1kN to 50kN. The products can be fitted into new or existing triaxial cells with a diameter up to100mm.
The design features an internal pressure compensation system that eliminates zero offset changes when the load cell is subjected to external pressure changes. Being insensitive to cell confining pressure, the load cell can be used inside the triaxial cell.

As the load is measured within the cell it eliminates the effects of piston friction.

The use of specially selected heat treated stainless steel and precision strain gauges ensure optimum performance and excellent long term stability.



PRICE : CALL



Two channel type K thermocouple logger without probes

Two channel type K thermocouple logger without probes

  • Two channel type K thermocouple logger without probes



  • Two channel type K thermocouple logger without probes

range -100 to 1372 °C

CodeTH084

Thermocouple logger for wireless temperature monitoring

·  User friendly, simple setup

·  Range -100 to 1372 °C

·  Two external type K probe sockets

·  Access temperature data worldwide via internet

·  Programmable high/low alarm



Range -100 to 1372 °C, with a resolution of 0.1 °C/°F to 999.9°C thereafter 1°C.

These WiFi loggers utilise the latest WiFi wireless technology. The loggers are a battery powered, cost-effective, temperature monitoring system that remotely records the temperature of appliances and buildings. Each logger transmits the recorded data to a WiFi router connected to the internet which can be accessed and viewed from a PC, laptop or tablet anywhere in the world.

The loggers have a range limited to the specification of the users WiFi router. Each logger has a intuitive LCD displaying temperature, WiFi connection status, max/min recorded temperatures, alarm status and battery life.

At programmable intervals, the loggers will record temperature from both sensors, recording up to a maximum of 18000 readings (9000 from each sensor). Each logger incorporates a red and green LED. The flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised preset alarms have been exceeded. Each unit is supplied with a USB lead. Software is available to download from the web and is licence free, no ongoing or subscription charges.



PRICE : CALL
